规格
(Ref. 128029-001 REV. C)
SPECIFICATIONS
Input Voltage:
+24Vdc, ±5% @ 5.5 amps maximum. Inrush is <6 amps for 1 second.
Environmental:
Operating Temperature:
+10°C to +45°C ambient for normal operation. The unit will operate from 0°C but will require an extended warm up period.
Storage Temperature:
-20°C to +60°C
Humidity:
0 to 80% RH, non-condensing
Altitude:
2000 meters ASL at full power. For altitudes above 2000 meters the maximum ambient operating
temperature is linearly derated by 1.1˚C per 300 meter interval.
FIB Input Power Connector:
2 pin Mate-n-Lok (TE 1-350942-0)
FIB Communication:
Fiber Optics dual channel Avago HFBR- 2524z/1524z. RS-232. Ethernet RJ-45 socket which supports 100BaseTX.
When Ethernet port is connected, RS-232 will not work. A Spellman Fiber Optic to RS-232 converter can be ordered,
as well as a complete Fiber Optic to USB communication kit.
FIB Vacuum Interlock Connector:
Dual channel Avago HFBR- 2524z (receiver) /1524z (transmitter)
FIB to Lens Modules Interconnection:
The modules are supplied with interconnecting cables for the power and communications.
The same kit is used to connect the FIBC to the lens module, and, if required, between a lens module and the next.

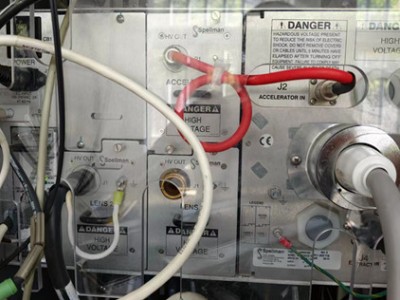

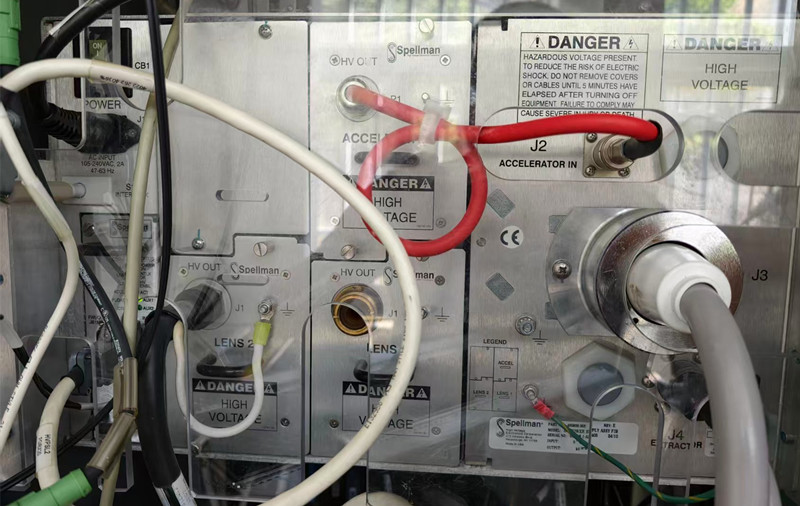

FIB HV Output Connector:
The main high voltage output is fitted with a custom 4 pole receptacle. A Spellman HV cable assembly,
available in different lengths, can be ordered with the unit.
Lenses HV Output Connectors:
The lenses are fitted with Lemo ERA3Y430CTL receptacles. A Spellman 5 meters mating HV cable assembly
can be ordered with the units. (See the product manual for additional cables and connectors information)
Safety Interlocks:
The vacuum interlock is an optical interlock. When it opens, the power supply is deactivated via relay
contacts and will not reactivate until it is enabled through the computer control, even though the interlock may close.
The FIB communication remains operational.
The interlock plate is situated around the FIB HV Output connector, and if removed will also disable all outputs.
The individual modules of the HVPS can be enabled and disabled through computer control, provided the appropriate hardware interlocks are enabled.
Weight:
Main chassis: 67.46 lbs. (30.6 kg)
Lens chassis: 27.56 lbs. (12.5 kg)
Regulatory Approvals:
Compliant to EEC Low Voltage Directive. UK Conformity Assessed. RoHS Compliant.
